RCOS Dichroic Beam Splitter...

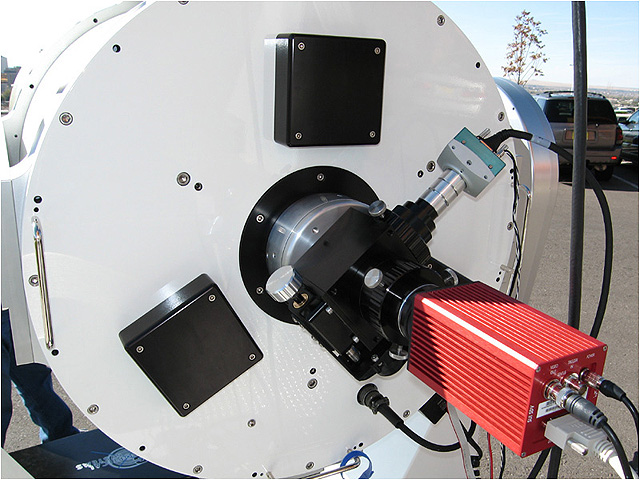

October 2006 - Field testing using a Sensors Unlimited 900nm - 1.7mu SWIR camera and Visible 400-700nm video camera. Both cameras receive approximately 95% of the light in their respective spectral range.

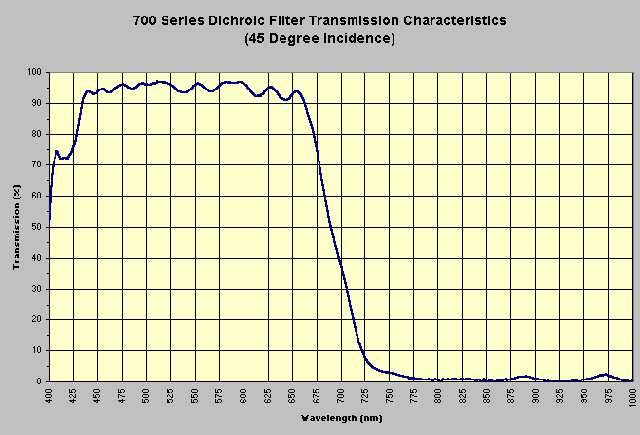

In this scenario, the visible light from 425nm is transmitted and the IR light above 700nm is reflected making for an ideal Visible / Short Wave IR camera combination.

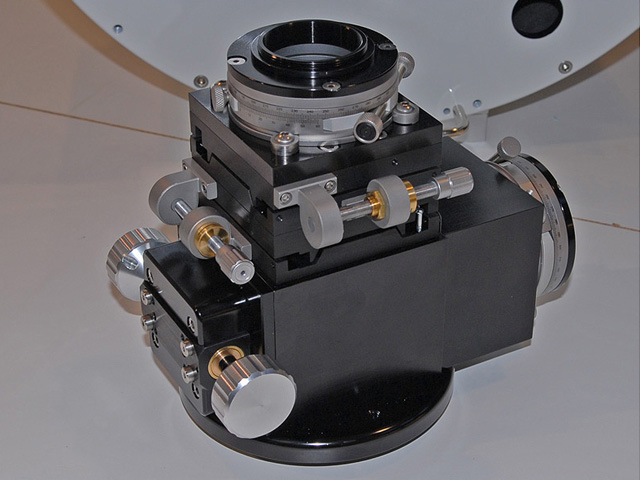

Shown here with optional X-Y and Rotational stages
Can support multiple configurations including 50/50 beam splitters, pellicles, and cubes.
Please call with frequency requirements (customer to specify frequency).
Uses Approximately 3.25 inches of back focus.
Up to 30 Pound Camera Payload Capacity.
Call for Pricing
