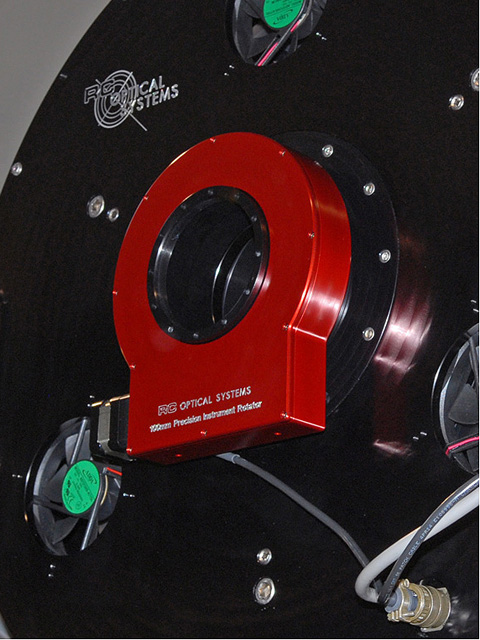

RCOS Precision Instrument Rotator - 100mm Series...

Designed specific to the 20RC and 24RC. Modeled and Engineered in SolidWorks.

103mm diameter clear aperture.
Robotic control with 2007 or newer TCC-II or TIM.
High torque stepper motor with home position indicator.
Step resolution of 1/200th of a degree.
Repeatability of 0.01 degrees.
Accommodates 100mm Field Flattener / Corrector inside (non-rotating) core.
Rotating core has terminating thread pattern fits 4.0625" diameter FIA Spacers and
a 10-32 tapped hole pattern 12X on a 4.375 inch BC..
Weighs 6.5 pounds and uses 3 inches of backfocus with the 20RC.
Uses 2.875 inches of backfocus with the 24RC.
